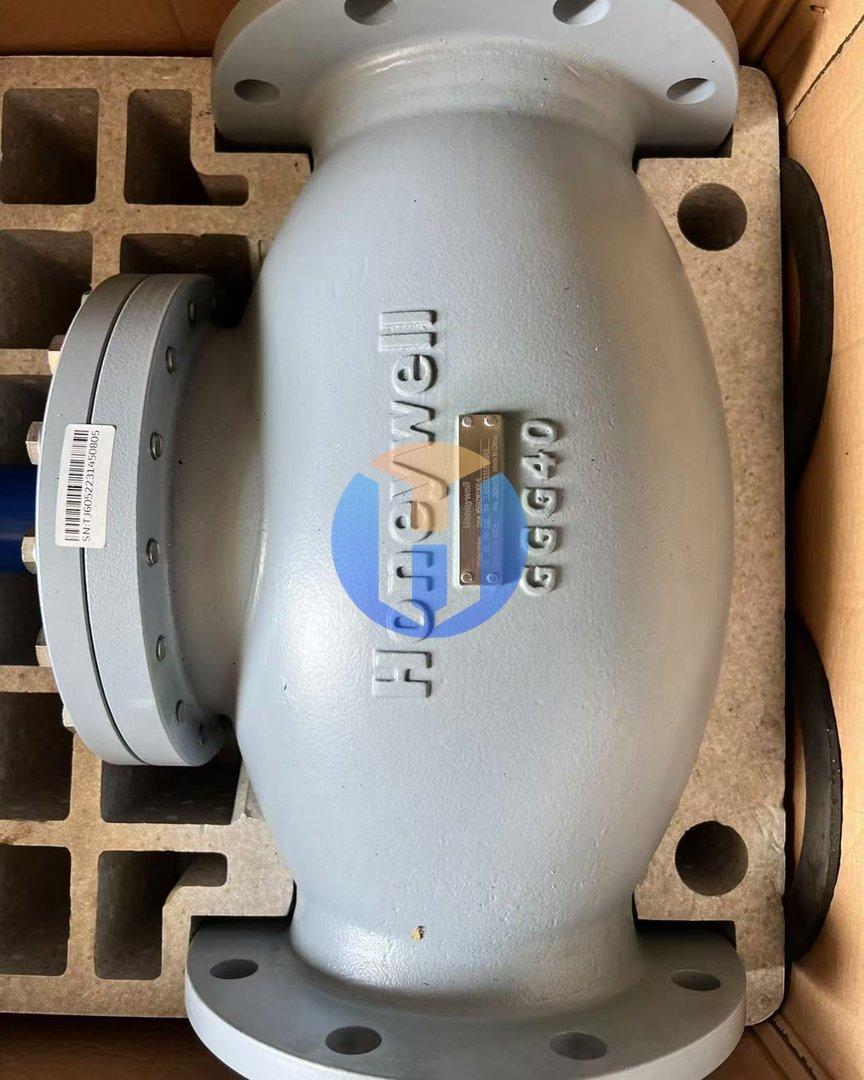

NEW Honeywell V5GV2W150F-E

Description

Honeywell V5GV2W150F-E: PN16 Flanged Globe Control Valve for HVAC & Industrial Systems Honeywell V5GV2W150F-E is a high-performance, two-way flanged globe control valve from Honeywell's renowned V5GV2 series, designed for precise flow regulation of chilled and hot water in commercial HVAC, district heating/cooling, and industrial process systems. As a DN150 (6-inch) premium linear valve, it delivers exceptional control stability, low leakage, and long service life, making it a top choice for main pipeline control in large buildings, data centers, hospitals, and process plants. Core Specifications & Model Breakdown Series: V5GV2W (Flanged Globe Valve, Water Service) Size: 150 = DN150 (6") nominal diameter Flow Coefficient: F-E = Kvs 250 m³/h (max flow capacity) Pressure Rating: PN16 (16 bar / 232 psi) Connection: Flanged (ISO 7005-2 standard) Stroke: 40 mm (standard for DN100-DN150) Flow Characteristic: Equal Percentage (ideal for precise temperature control) Rangeability: 50:1 (excellent turndown for wide load variations) Leakage Rate: ≤ 0.02% of Kvs (Class IV, metal hard seal) Media: Chilled water / Hot water Media Temp: -15°C to +130°C Body Material: Ductile cast iron (QT450-10 / GGG40) Trim Material: Stainless steel (valve plug, seat, stem) Seal: PTFE + stainless steel spring packing, FKM O-rings Key Design & Performance Features Pressure-Balanced Plug: Standard on DN32 and above, significantly reduces required actuator force, enabling use with smaller, more cost-effective Honeywell ML7420/ML7421/ML8824 series linear actuators. Metal-to-Metal Hard Seal: Ensures ultra-low leakage rates (<0.02% Kvs) and extended service life even under high differential pressures. Direct Coupling: Tool-free, direct-mount design to Honeywell ML-series actuators, eliminating linkages, reducing installation time, and improving mechanical reliability. High Precision Stem Guidance: Ensures accurate positioning and stable, vibration-free operation, critical for maintaining tight temperature control. Rugged Construction: Ductile iron body provides high strength and corrosion resistance for demanding commercial and industrial environments. Compatible Actuators (Sold Separately) ML7421A/B Series: 24 VAC, modulating (0-10V/4-20mA), standard stroke. ML8824A Series: 24 VAC or 230 VAC, modulating, high-thrust version (ideal for DN150). ML7420 Series: 24 VAC, floating/on-off control. Typical Applications HVAC Main Lines: Chilled/hot water distribution in large commercial buildings, skyscrapers, and campuses. District Energy: Primary/secondary circuit control in district heating and cooling networks. Industrial Process: Precise water temperature control in manufacturing, food & beverage, and pharmaceutical facilities. Energy Efficiency: Ideal for systems requiring high turndown (50:1) to optimize energy usage under partial load conditions.
